Product Description

Gas control system pressrue sensor

Features

Ø

ØMicro-fused Technology Pressure Transmitter

ØAll Metal Sealing, No Leakage Risk
ØSuperior Performance at Low Temperature

ØExplosion-proof Circuit Design
ØOverload Ability Strong

ØVibration Resistance Strong

Typical Application

Ø

ØCompressor

ØLow Temperature Hydraulic System

ØIndustrial Control

Product Introduction

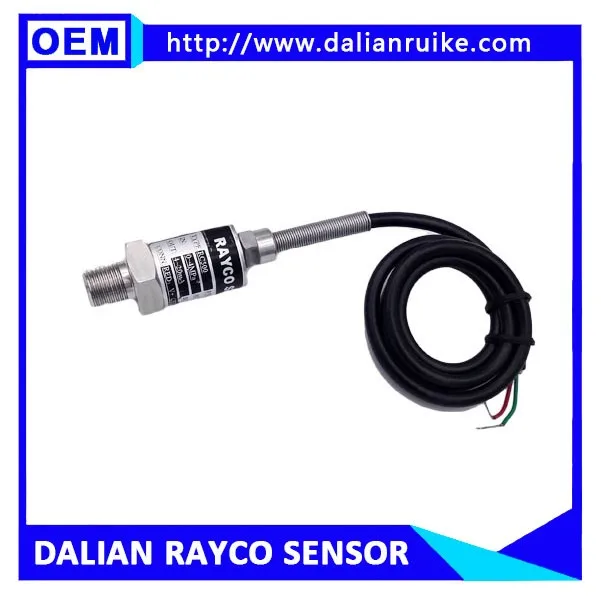

RC500 pressure transmitter by the composition micro fused pressure sensor and high precision digital integrated circuit, can accurate measurements and for a long period of time -196degrees liquid and quickly provide output signal. This type of pressure transmitter through a dedicated circuit module, filtering and noise suppression, and provides temperature compensation, make the product has unique hydrogen and hydrogen brittleness can resistance, high temperature resistance, resistance to overload, anti-jamming, long life, high cost performance, etc. Typical application: LNG and CNG pressure measuring, Gas control system, Liquefied petroleum gas fuel vehicle and liquefied gas carrier pressure monitoring and measurement.

RC500 pressure transmitter pressure seat adopts 17-4PH stainless steel single integral structure processing, The integration of the stainless steel diaphragm to overload performance is much higher than diffusion silicon, ceramic, etc, and pressure interface no welds, no oil or other organic matter, sealed performance is good. Sensor sensitive device adopts glass melting technology solid sintering on pressure seat, the sensor of high temperature resistant, shock resistant performance significantly increase, Ensure the sensor in harsh industrial environments, long-term stability and reliability, durable. In the standard purification production process, the parameters are strictly controlled, the entire product components, semi-finished and finished products after the strict test and screening of ageing, stable and reliable performance.

Standard Ranges

Range

Unit

Range

Unit

0 -1

MPa

0 -3.5

MPa

0 -7

MPa

0 -10

MPa

0 -20

MPa

0 -25

MPa

0 -40

MPa

0 -60

MPa

Note:special needs,please contact the manufacturer.

Performance Specifications

Supply Voltage:5Vdc Ambient Temperature:25ºC

PARAMETERS

VALUES

UNIT

Accuracy (combined non linearity, hysteresis, and repeatability)

±0.25 ±2

%Span

Temperature drift—Zero

±0.02

%FS/℃

Temperature drift—Span

±0.02

%FS/℃

Long term stability (1 year)

±0.25

%Span

Maximum Resistance Between Transducer & Body(250Vdc)

50

Pressure Overload

Rated

Burst Pressure

Rated

Load impedance

>1

Pressure Cycles (Zero to Full Scale)

10

Million

Compensated Temperature

-20 ~ 80

Operating Temperature

-40 ~ 80

Storage temperature

-40 ~ 100

Vibrate

±20

g

Shock (11mS)

100

g

Dimensions


Note:special needs,please contact the manufacturer.

Output Options

ORDER CODE INDICATION
