Waterjet Cutting 5 Axis Cnc Machine
  • Seller Shanghai Yuanhong Ultra High Pressure Waterjet Technology Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $1000-5000 /Set

Item Details

Port: Shanghai/any port in China
Supply Ability: 60 Set/Sets per Week of waterjet cutter
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal

Product Description

Company Information

Yuanhong ultra-high pressure water jet technology co.,ltd cooperate with many world famous companies,including vibration hong and Taiwan,the united states of silver PSP (Puget Sound Precision).

Shanghai Yuanhong will in line with " customer first,quality first"the idea,the full use of the various water jet essence,according to the customer need to configure the best solutions and service for the user.

1.YH water jet will provides technical support and maintenance training to make you fully operate the water jet cutting machine.

Well trained & experienced staff are to answer all your inquires in English of course.

2.Spare parts will be supplied

YH waterjet spare parts high quality were approved by our customers. And we will give you green channel to get our spare parts in order to guarantee the machine run continues.

3.Professional technical training

· Introduction of every parts

· wear parts replacement

· Repair kits supply

· Drawing designing.

· Equipment operation

4.Your business information will be confidential to any third party.


The quality will be guaranteed due to 12 years working experience in water jet cutting machine an spare parts field. Our strong technical capacity, advanced processing and professional after-sales service.

Main Products

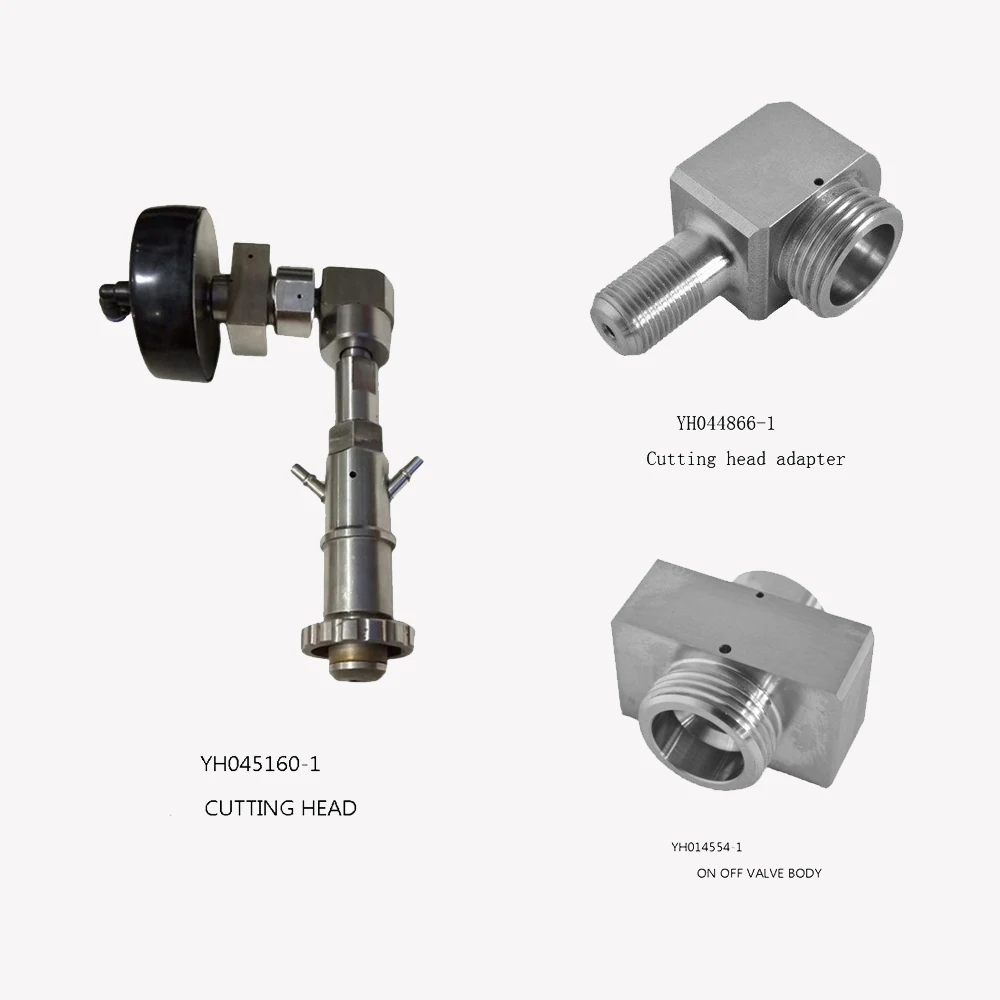

Water jet cutting machine consists of four parts,water jet cutting table( include cnc controller and water tank),water jet cutting head(3 axis and 5 axis ),water jet abrasive feeder system and waterjet cutting pump( direct drive pump and intensifier pump).

Cutting table Model 1313 2015 3020 4020 6020 Customized
Structure Gantry water cutting platform/cantiler series cutting platform
Travel X Axis 1300mm 2000mm 3000mm 4000mm 6000mm
Y Axis 1300mm 2000mm 2000mm 2000mm 2000mm
Cutting head 3 axis / 5 axis
Movement : Linear motion/Rotary motion
CNC Controller

The key function

Forward & Backward processing function

Even pace control function

Small arcs speed auto processing function

Circle processing function

Partial and smooth processing modes
Abrasive Feeder

Max. inlet air pressure : 0.2-0.4 Mpa

Min. inlet air flow:0.028m3/min

Abrasive capacity:170 L

Intensifier pump Reted power Max.pressure Control voltage and cuttent Ambient temperature Fuel tank capacity Attenuation Cooling flow
50HP (37 KW) 60000psi (4137 bar) 24DC,10AMPS 5-40 ℃ 114L 1L 11.4L/MIN
Direct drive pump Reted power Output pressure Max.pressure Operating voltage and power Min.inlet water Pump speed Fuel tank capacity
30HP (22KW) 55000psi 60000psi (4137 bar) 210-240/360-420V 50HZ 60psi 1 gallon/min. 720 rmp 2.6 L
Packaging & Shipping

Packing: Industrial packing or single box+ wooden box+ pallent or as your requirement.

Delivery time: 10-15 days after payment or as your requirement.

1. If you buy water jet spare parts, we will provide a soft package for your products.

2. If you buy the large water jet cutting machine equipment, we will provide you the wooden box for your products.
